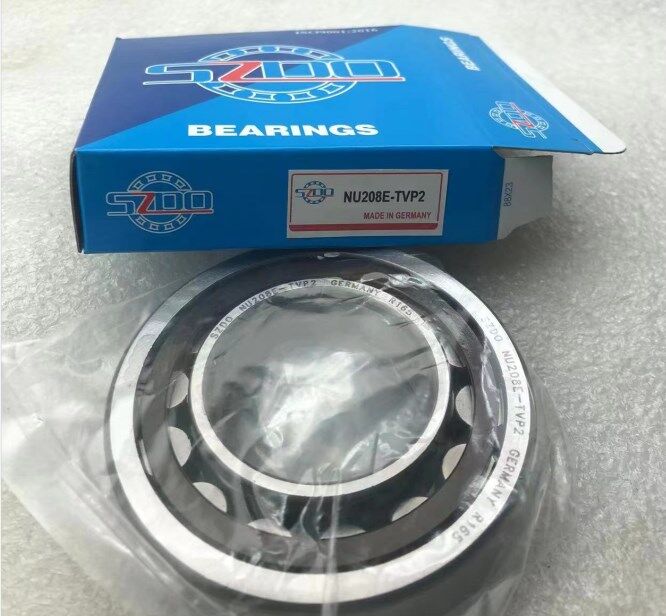

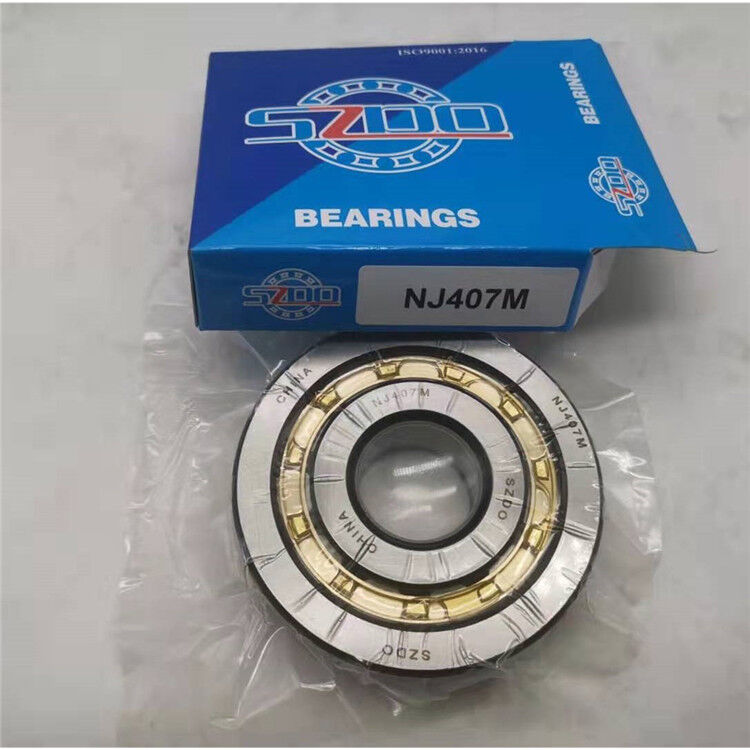

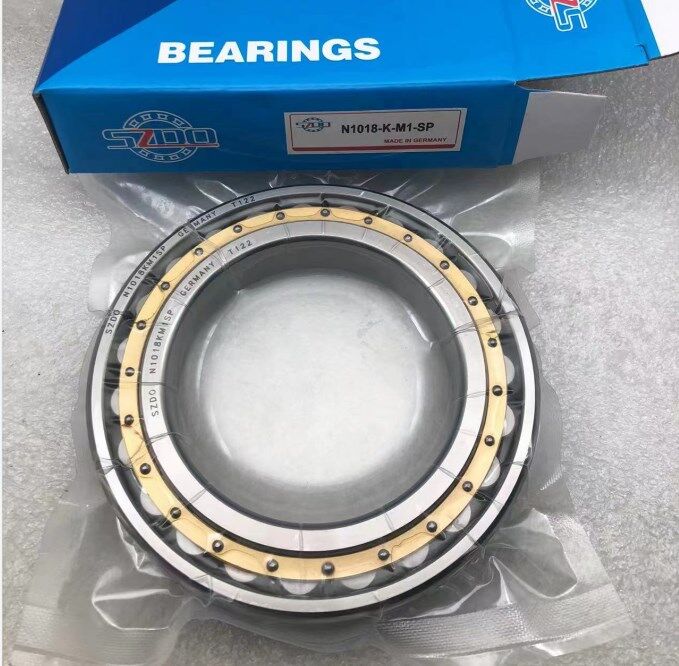

Cylindrical Roller Bearing

Cylindrical Roller Bearings are bearing in which cylinders are used as the rolling elements as opposed to balls in ball bearings.As such, the rollers have a greater (linear) contact area with the outer ring and are distribute loads across a broader surface.
Subsequently, they have a relatively high radial load capacity and are suitable for high speeds. Double-row cylindrical roller
bearings have high radial rigidity and are used primarily for precision machine tools.
Depending on the series as defined below a number of cylindrical roller bearings have no ribs on either the inner or outer ring,so the rings can move axially relative to each other which can be used as free-end bearings.
Pressed steel (with or without tins or fins) or machined brass cages are generally used, but sometimes molded polyamide cages are also available depending on the application. Cylindrical Roller Bearings are also available without cages with a full complement of rollers. This allows even higher loads but at the expense of speed.
Single row cylindrical roller bearings are also manufactured with snap ring grooves on the outer rings. This design simplifies the bearing joint as the bearings are located into the housing by means of the snap rings. The snap ring groove and snap rings are in accordance with IS0 464.

There are different types designated NU, NJ, NUP, N, NF for single-row bearings, and NNU, NN for double-row bearings depending on the design or absence of side ribs.

(N/NU/NJ/NUP/RN/NF/NH/NJF/RNU
N1004 N1005 N1006 N1007 N1008 N1009 N1010 N1011 N1012
N1013 N1014 N1015 N1016 N1017 N1018 N1019 N1020 N1022
N1024 N1026 N1028 N1030 N1032 N1034 N1036 N1038 N1040
N1044 N1048 N1052 N1056 N1060 N1064 N1068 N1072 N1080 N1092 N1094
NU1004 NU1005 NU1006 NU1007 NU1008 NU1009 NU1010 NU1011 NU1012
NU1013 NU1014 NU1015 NU1016 NU1017 NU1018 NU1019 NU1020 NU1022
NU1024 NU1026 NU1028 NU1030 NU1032 NU1034 NU1036 NU1038 NU1040
NU1044 NU1048 NU1052 NU1056 NU1060 NU1064 NU1068 NU1072 NU1080 NU1092 NU1094
NJ1009 NJ1010 NJ1016 NJ1017 NJ1018 NJ1019 NJ1020 NJ1022 NJ1024
NJ1026 NJ1028 NJ1030 NJ1032 NJ1034 NJ1036 NJ1038 NJ1040 NJ1044
NJ1048 NJ1052 NJ1056 NJ1060 NJ1064 NJ1068 NJ1072 NJ1080

NUP202 NUP203 NUP204 NUP205 NUP206 NUP207 NUP208 NUP209 NUP210
NUP211 NUP212 NUP213 NUP214 NUP215 NUP216 NUP217 NUP218 NUP219
NUP220 NUP221 NUP222 NUP224 NUP226 NUP228 NUP230 NUP232 NUP234
NUP236 NUP238 NUP240 NUP244 NUP248 NUP252 NUP256 NUP260

NF304 NF305 NF306 NF307 NF308 NF309 NF310 NF311 NF312
NF313 NF314 NF315 NF316 NF317 NF318 NF319 NF320 NF322 NF324 NF326 NF328
RN304 RN305 RN306 RN307 RN308 RN309 RN310 RN311 RN312
RN313 RNU304 RNU305 RNU306 RNU307 RNU308 RNU309 RNU310 RNU311
RNU312 RNU313 NUP304 NUP305 NUP306 NUP307 NUP308 NUP309 NUP310
