Product details

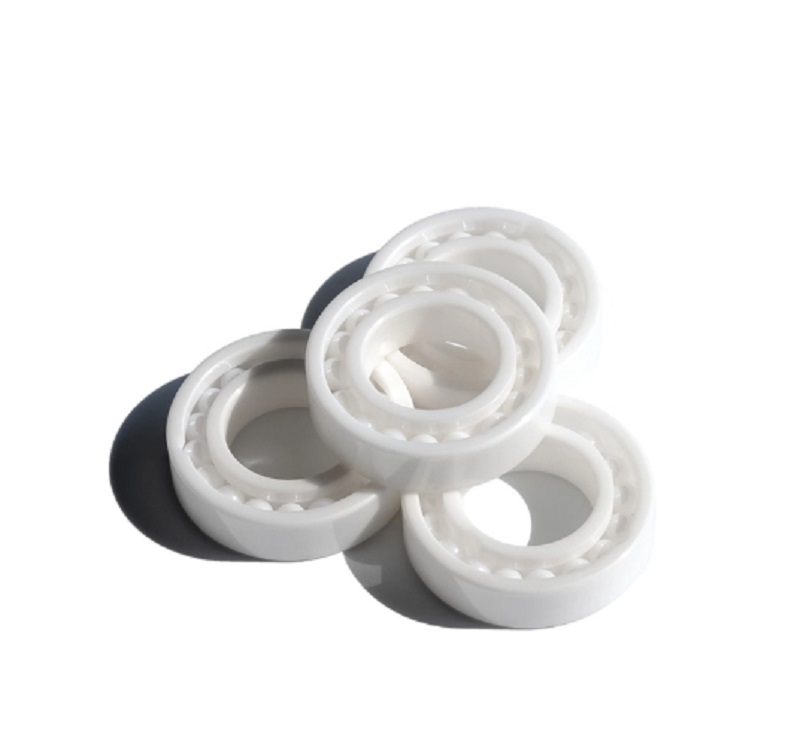

Ceramic Deep Groove Ball Bearing

Ceramic bearings have characteristics such as high temperature resistance, cold resistance, wear resistance, corrosion resistance, magnetoelectric insulation, oil-free self-lubrication, and high rotational speed. It can be used in extremely harsh environments and special working conditions, and can be widely used in aviation, aerospace, navigation, petroleum, chemical, automotive, electronic equipment, metallurgy, power, textiles, pumps, medical equipment, scientific research, national defense and military fields. It is a high-tech product for the application of new materials.

The rings and rolling elements of ceramic bearings are made of all ceramic materials, including zirconia (ZrO2), silicon nitride (Si3N4), and silicon carbide (Sic). The retainer is made of polytetrafluoroethylene, nylon 66, polyether imide, zirconia, silicon nitride, stainless steel or special aviation aluminum, thereby expanding the application range of ceramic bearings.

Application field:

Medical equipment, cryogenic engineering, optical instrument, high-speed machine tools, high-speed motors, printing machinery, food processing machinery.

In the fields of aerospace, navigation, nuclear industry, petroleum, chemical industry, light textile industry, machinery, metallurgy, electricity, food, locomotives, subways, high-speed machine tools, scientific research and national defense military technology, etc., it is necessary to work under special working conditions such as high temperature, high speed, deep cold, flammable, explosive, strong corrosion, vacuum, electrical insulation, non-magnetic, dry friction, etc. The indispensable replacement role of ceramic bearings is gradually recognized by people.

Usage classification:

1) High speed bearing: It has advantages such as cold resistance, low stress elasticity, high pressure resistance, poor thermal conductivity, light self weight, and low friction coefficient, and can be applied in high-speed spindles and other high-precision equipment at 12000 rpm to 75000 rpm;

(2) High temperature bearing: The material itself has high temperature resistance of 1200 ℃ and good self-lubrication. It does not cause expansion due to temperature difference when used between 100 ℃ and 800 ℃. Can be applied in high-temperature equipment such as furnaces, plastics, and steel making;

(3) Corrosion resistant bearings: The material itself has corrosion resistance characteristics and can be applied in fields such as strong acids, strong alkalis, inorganic, organic salts, seawater, etc., such as electroplating equipment, electronic equipment, chemical machinery, shipbuilding, medical equipment, etc.

(4) Anti magnetic bearing: Due to its lack of magnetism, it does not absorb dust, which can reduce bearing surface peeling and thus reduce operating noise. Can be used on demagnetization devices. Precision instruments and other fields.

(5) Electric insulated bearings: Due to their high resistivity, they can avoid arc damage to the bearings and can be used in various power equipment that require insulation.

(6) Vacuum bearings: Due to the unique oil-free self-lubricating characteristics of ceramic materials, they can overcome the problem of ordinary bearings being unable to achieve lubrication in ultra-high vacuum environments. Note: The above five types of bearings can be used in high-temperature, high-speed, acid-base, magnetic field, and non insulation environments with the same set of bearings. However, due to different material properties (please refer to the rare earth ceramic material performance table), customers are advised to choose the most suitable ceramic bearing material based on their application situation when selecting products.

Product table

PN.dDBr(min)d1D1
6000CE102680.31224
6200CE103090.31525
6300CE1035110.31530
6001CE122880.31426
6201CE1232100.31727
6301CE1237120.31831
6002CE153290.31730
6202CE1535110.32030
6302CE1542130.32136
6003CE1735100.31933
6203CE1740120.32235
6303CE1747140.32341
6004CE2042120.32438
6204CE2047140.32641
6304CE2052150.32745
6005CE2547120.62943
6205CE2552150.33146
6305CE2562170.63255
6006CE3055130.33550
6206CE3062160.63656
6306CE3072190.33765
6007CE3562140.64057
6207CE3572170.34265
6307CE35802114471
6008CE4068150.34563
6208CE40801814773
6308CE4090230.34981
6009CE45751615070
6209CE4585190.65278
6309CE451002515491
6010CE5080160.65575
6210CE50902015783
6310CE5011027260100
6011CE55901816184
6211CE55100211.56491
6311CE5512029265110
6012CE60951816689
6212CE60110221.569101
6312CE6013031272118
6013CE651001817194
6213CE6520231.574111
6313CE6514033277128
6014CE7011020176104
6214CE70125241.579116
6314CE7015035282138
6015CE7511520181109
6215CE75130251.584121
6315CE7516037287148
6016CE8012520186119
6216CE8014026290130
6316CE8017039292158
6017CE85130221.191124
6217CE8515028295140
6317CE8515028295140
6018CE92145241.597133
6218CE90160302100150
6019CE95150241.5102138
6219CE95170322107158
6020CE100160261.5107143
6220CE100180342112168
