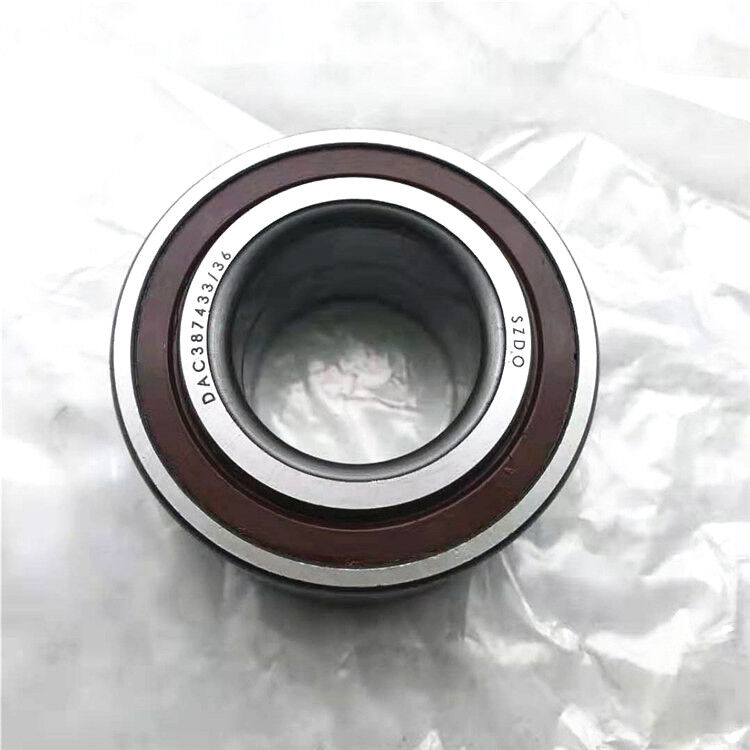

Deep groove ball bearing

SZDO Deep groove ball bearing consists of an outer ring, an inner ring, a group of steel balls and a group of cages.  There are two types of deep groove ball bearings: single row and double row.  Deep groove ball structure is also divided into seal and open structure.  The open type means that the bearing has no sealing structure.  The sealed deep groove ball is divided into dust-proof seal and oil-proof seal.  The dust-proof seal cover is made of steel plate, which only serves as a simple way to prevent dust from entering the bearing raceway.  The oil-proof type is a contact oil seal, which can effectively prevent grease overflow in the bearing.

Single Row and Double Rowthey fall under two designs: there are single-row deep groove ball bearings with a single row ; and there are double-row bearings, which have two rows of bearing balls. They can also be made in different sizes and for different loads according to their application, from miniature ball bearings for light loads and small assemblies to large deep groove ball bearings and heavy load deep groove bearings.

Deep Groove Ball Bearing 6000 ,6200,6300,6900 series etc.( steel cage, brass cage , nylon cage)；

1)Series: 6000 series, 6200 series, 6300 series and 6400 series,

2)Corresponding types: 605-6032, 625-6248, 6300-6344, 6403-6418

3)Material Used: GCr15-China, (AISI)52100-American, (Din)100Cr6-Germany,

4)Shield/closure: open bearing, Z, ZZ, RS,2RS,

5)Snap ring: N, NR

6)Vibration and noise level: Z1, Z2, Z3

7)Precision level: P0, P6, P5(ABEC-1, ABEC-3,ABEC-5

Contact us today to learn more about our processes or request a quote to start your order.
